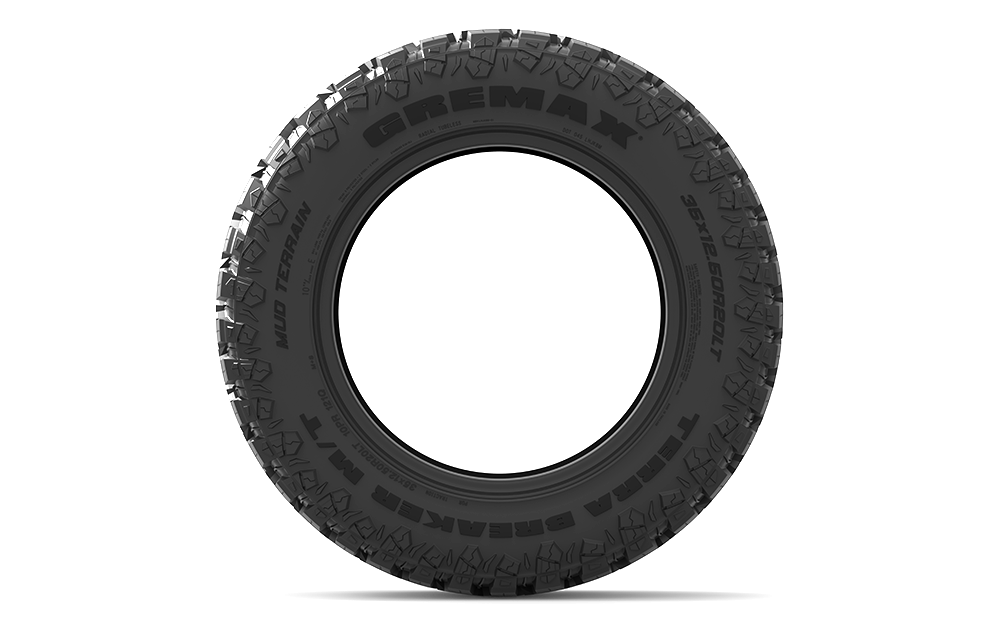

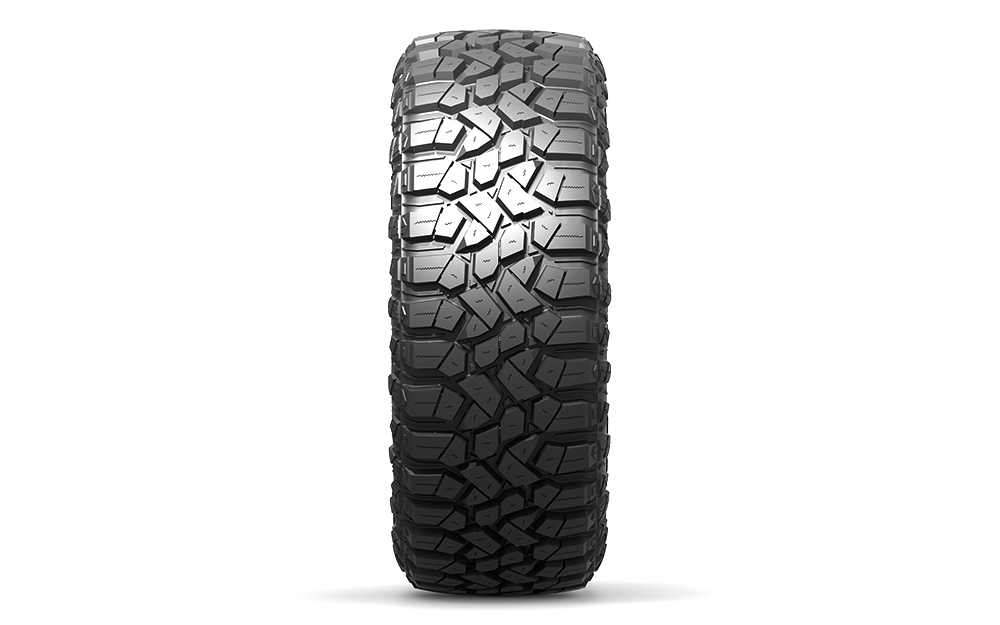

4x4 Mud Terrain · SUV & Pick-Up Truck
Designed to challenge the toughest roads, the Terra Breaker M/T features robust “Robotic Arm” traction blocks, extra-deep grooves, notched and scalloped shoulder lugs to enhance your bold, aggressive off-road experience. Heavy-duty, F-rated full 3-ply construction across many sizes, with increased load capacity suitable for ¾ and 1-ton trucks on rugged terrains.
Performance
Mud Terrain, All-Season
Specifications
12 PLY, M+S Rated, F-Rated, Rim Protector
Wheel Diameter
15'', 16'', 17'', 18'', 20'', 22'', 24'', 26''
Available Sizes
31
Wide tread stance with open shoulder design delivers superior off-road performance and all-weather assurance.
Aggressive robotic arm blocks combined with over-the-shoulder tread spread provide additional forward traction in deep mud and snow and improved off-road handling when making hard turns.
Deep-cut zigzag blade sipes help eliminate water and slush to improve hydroplaning resistance and traction in wet and slippery conditions.
Notched and scalloped shoulder lugs are staggered to enhance confident lateral grip and traction in harsh off-road environments.
Triangle-shaped stone ejectors effectively avoid stone retention and penetration through to steel belts, enabling longer service life and preventing irregular wear of the footprint.
Together with hybrid wear-resistant compound, the heavy-duty carcass empowered with full 3-ply body construction and high turn-up sidewalls acts as an extra layer of reinforcement to resistance against heat, punctures and cuts.
| Features | Wheel Diameter | Size | Ply Rating | Load Index & Speed Rating |  |
 |
 |
 |
 |
Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max Load (kg) | Max Load (lbs) | Max Pressure (kPa) | Max Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
17 | 33x12.50R17LT | 10PR/LR E | 120Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 32.8 | 3085 | 65 | ||
 |
17 | 35x12.50R17LT | 10PR/LR E | 121Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 34.5 | 3195 | 65 |
| Features | Wheel Diameter | Size | Ply Rating | Load Index & Speed Rating | |
|
|
|
|
Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max Load (kg) | Max Load (lbs) | Max Pressure (kPa) | Max Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
18 | 33x12.50R18LT | 10PR/LR E | 118Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.7 | 32.8 | 2910 | 65 | ||
 |
18 | 33x12.50R18LT | 12PR/LR F | 122Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.7 | 32.8 | 3305 | 80 | ||
 |
18 | 35x12.50R18LT | 10PR/LR E | 123Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 34.5 | 3415 | 65 | ||
 |
18 | 35x12.50R18LT | 12PR/LR F | 128Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 34.5 | 3970 | 80 |
| Features | Wheel Diameter | Size | Ply Rating | Load Index & Speed Rating | |
|
|
|
|
Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max Load (kg) | Max Load (lbs) | Max Pressure (kPa) | Max Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
20 | 33x12.50R20LT | 10PR/LR E | 114Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.7 | 32.7 | 2600 | 65 | ||
 |
20 | 33x12.50R20LT | 12PR/LR F | 119Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.7 | 32.7 | 3000 | 80 | ||
 |
20 | 35x12.50R20LT | 10PR/LR E | 121Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.6 | 34.7 | 3195 | 65 | ||
 |
20 | 35x12.50R20LT | 12PR/LR F | 125Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.6 | 34.7 | 3640 | 80 |
| Features | Wheel Diameter | Size | Ply Rating | Load Index & Speed Rating | |
|
|
|
|
Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max Load (kg) | Max Load (lbs) | Max Pressure (kPa) | Max Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22 | 33x12.50R22LT | 10PR/LR E | 109Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 32.8 | 2270 | 65 | ||
 |
22 | 33x12.50R22LT | 12PR/LR F | 114Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 32.8 | 2600 | 80 | ||
 |
22 | 35x12.50R22LT | 10PR/LR E | 117Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 34.8 | 2835 | 65 | ||
 |
22 | 35x12.50R22LT | 12PR/LR F | 121Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 10 | 12.5 | 34.8 | 3195 | 80 |
| Features | Wheel Diameter | Size | Ply Rating | Load Index & Speed Rating | |
|
|
|
|
Standard Rim | Section Width (mm) | Overall Diameter (mm) | Max Load (kg) | Max Load (lbs) | Max Pressure (kPa) | Max Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24 | 35x13.50R24LT | 10PR/LR E | 118Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 11 | 13.6 | 34.7 | 2910 | 65 | ||
 |
24 | 40x15.50R24LT | 10PR/LR E | 128Q | UTQG N/A | Sidewall BSW | Rim Protector | YES | YES | 12 | 15.4 | 39.8 | 3970 | 65 |
* Availability of products shown above may vary for different countries and regions. Please consult your account manager for local availability. Specifications might subject to changes without further notice.
